Plate No. 20 What you are building

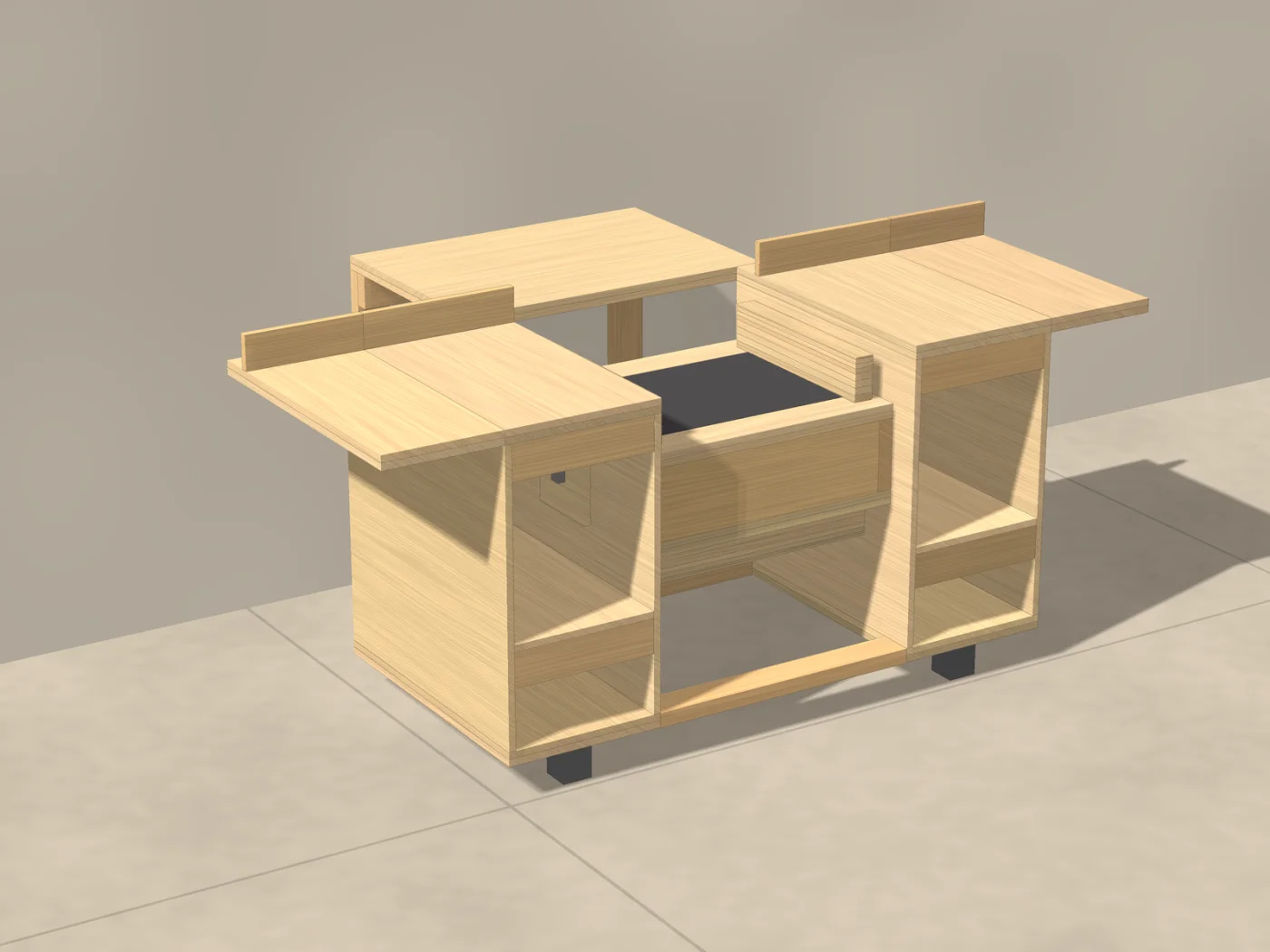

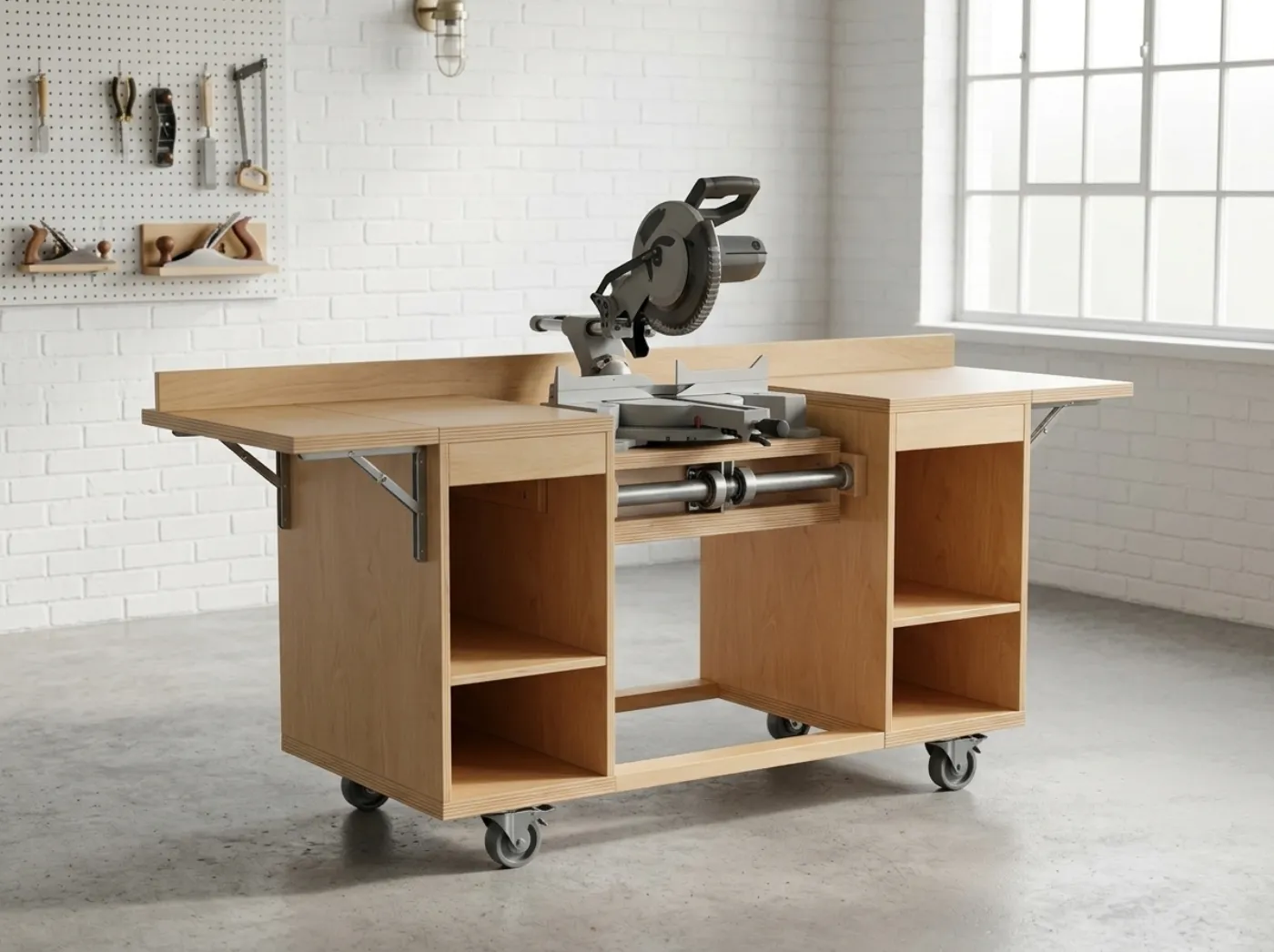

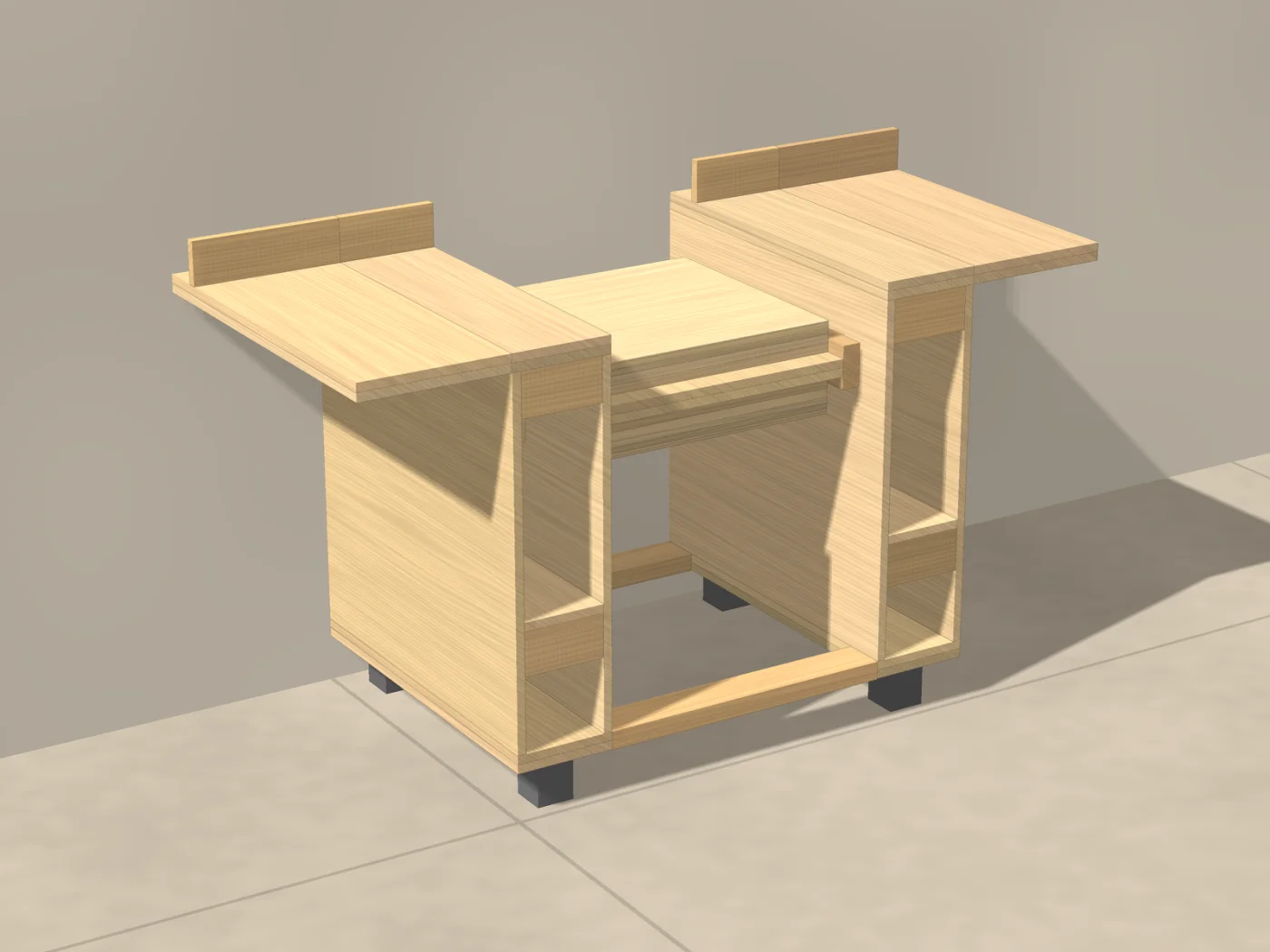

Flip top workbench plans PDF: a rolling workbench on locking casters with a rotating center platform that flips to put a miter saw, a jobsite table saw or a planer up level with the wings. Four complete builds: compact 30 x 40 in and full 30 x 60 in, each as a two-tool flip-top or a table saw and miter saw build with an outfeed table. Every dimension is in inches AND millimeters.
Builds: 30 x 40 in (1016 mm) and 30 x 60 in (1524 mm) footprints, 36 in (914 mm) work height, 1/4 in gap to a 1 in steel pipe pivot. Platform sized for a compact jobsite table saw with an 8-1/4 in blade and a 12 in miter saw. Plywood (3/4 in) cabinets with 2x4 rails, 2x4 or 2x8 platform frame, four locking swivel casters, two 12 in fold-down leaves and a lift-off outfeed table (table saw builds). Tool table design range: 1 to 6-1/2 in above its base (you measure yours).
Who these plans are for
Garage and basement builders with a jobsite table saw and a miter saw and not enough floor, using standard 2x4s, 2x8s and plywood.
How the set works
Pick compact or full and the build you want, measure your tools, then follow the drawings, cut list and materials sheets for your bench, plus platform and pivot, saw opening, outfeed table, storage, fastener, budget and maintenance pages.
Sheets inside

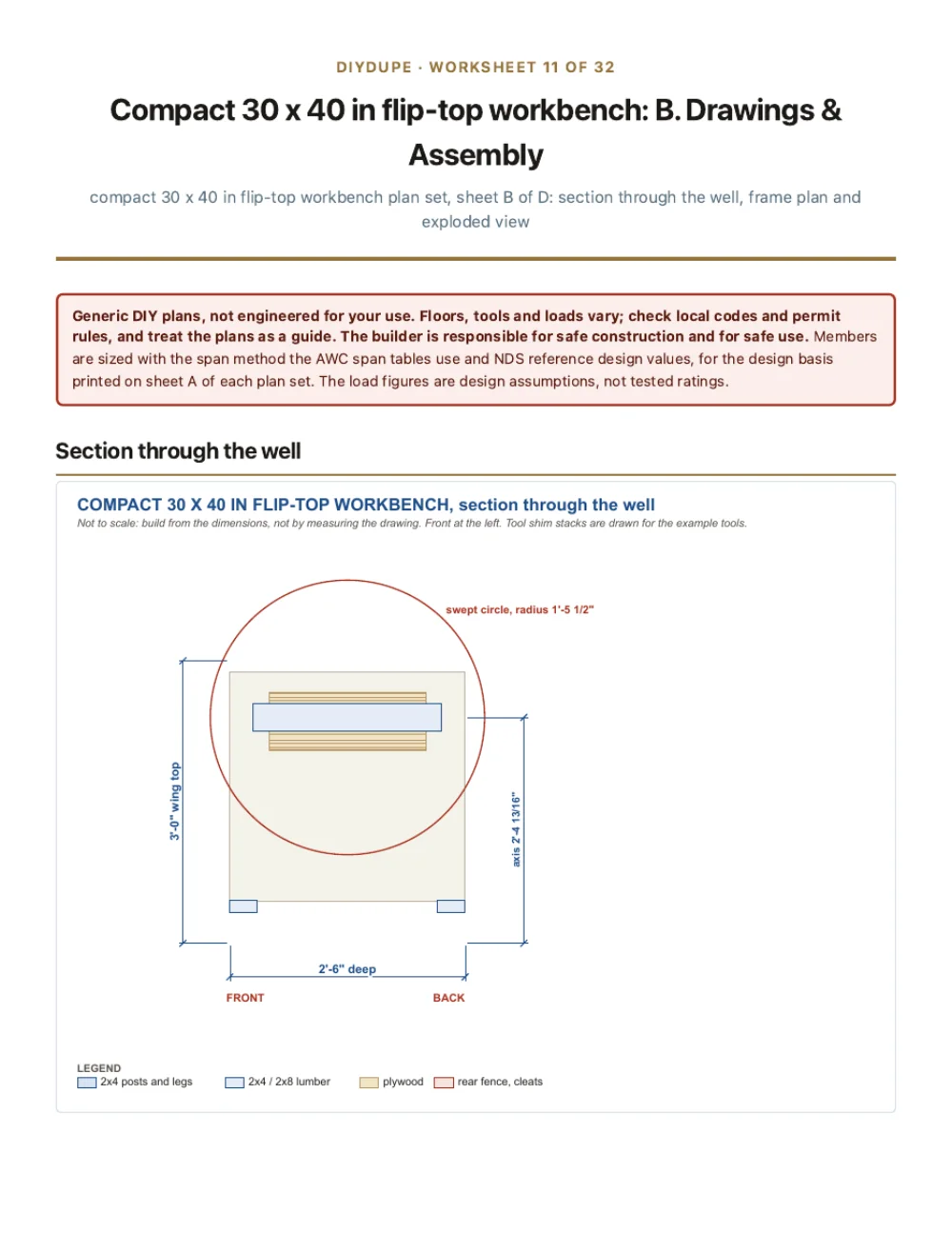

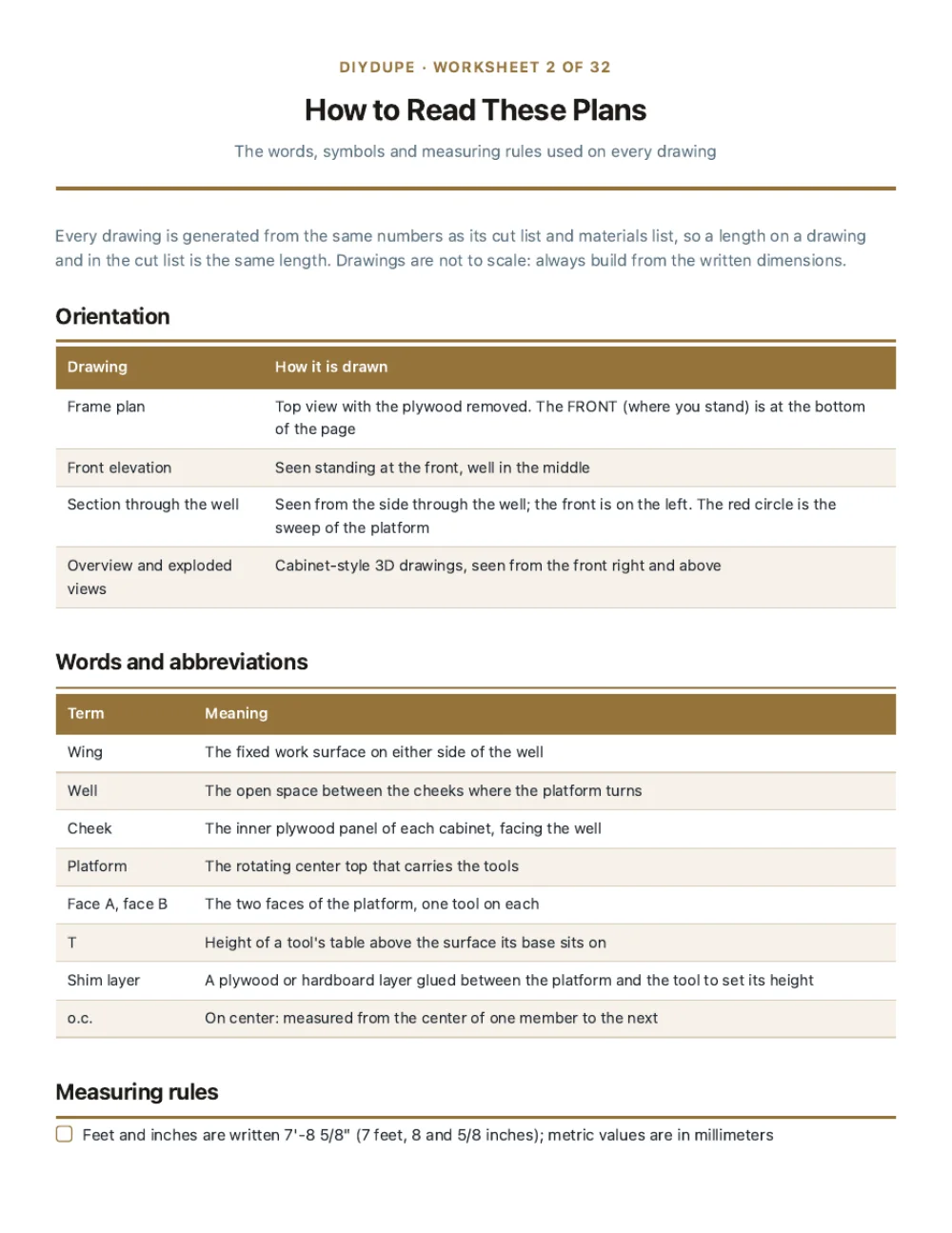

Plan selector, How to read the plans, Metric and imperial dimensions, Shop safety and setup, Tool height and shim lookup, Flip clearance and balance, Platform pivot and index plungers, Table saw opening and outfeed table, Storage leaves and board support, then for each of the four benches: A design basis and member schedule, B drawings and assembly, C cut list and checkpoints, D materials list; Tools, Build sequence, Fastener schedule, Glue-up and finishing, Build day checklist, Budget planner, Maintenance log, Lumber shopping summary.
- Materials cost workbook (Excel and Google Sheets)
- Every sheet as its own printable page (ZIP)
- Printable plans (PDF)
- How to open the workbook in Google Sheets (PDF)
Price the build before you buy a board
These are the materials lists from the plans themselves, priced at typical US home-center prices. Type your own prices to see your total. Hardware and finishes link to Amazon so you can compare.
Estimates are our typical US home-center prices, not Amazon prices; check current prices where you buy. They change with your region and the lumber market. Amazon links are affiliate links: we may earn a small commission at no cost to you.
What you need, nothing more
Straight from the tools sheet in the The Flip-Top Bench plans. One cordless kit covers most of it; pick the tier that suits how often you build.
Start with a cordless kit
RYOBI ONE+ 18V Cordless 2-Tool Combo Kit with Drill/DriverSee it on AmazonMid-range
Makita XT269T 18V LXT Lithium-Ion Brushless Cordless 2-Pc. ComboSee it on AmazonPro
Milwaukee Electric - M18 Fuel. 2-Tool Combo KITSee it on AmazonThe tools the plans call for
Nice to have, and the supplies
Amazon links are affiliate links: we may earn a commission at no cost to you. Check current prices on Amazon. Lumber and plywood are on the materials list above; buy those locally.
Before you build
How much does it cost to build the Flip-Top Bench?
Our estimate for the materials in the compact flip is about $520 to $750 at typical home-center prices. Lumber prices vary a lot by region and season, so the plan set includes a workbook where you type your own prices and the total works itself out.
What sizes are included?
This set includes Compact Flip, Full Flip, Compact Saw build and Full Saw build, each with its own drawings, cut list and materials list.
Do I need advanced woodworking skills?
Garage and basement builders with a jobsite table saw and a miter saw and not enough floor, using standard 2x4s, 2x8s and plywood.
Are these engineered plans?
No. They are generic DIY plans, not engineered or stamped drawings. Each member is checked against a stated design load, and the design basis is printed in the plans, but you are responsible for safe construction, local codes and safe use.
How do I get the files?
Right after checkout you land on your download page with the PDF, the workbook and a ZIP of every sheet. Stripe also emails your receipt. Bookmark the page to download again later.
What if they are not what I expected?
Write to us within 30 days and we will fix the problem or refund you. See the guarantee page for details.
This is a digital download, no physical item ships. These are generic DIY plans, not engineered or stamped drawings. Floors, tools and loads vary: check your local building codes and permit rules, read every tool manual and wear eye and ear protection. Never use a tool until the platform is locked. Plans are a guide; the builder is responsible for safe construction and safe use. Colors can look a little different on your screen and printer. For personal use only; please do not resell or share the files.
