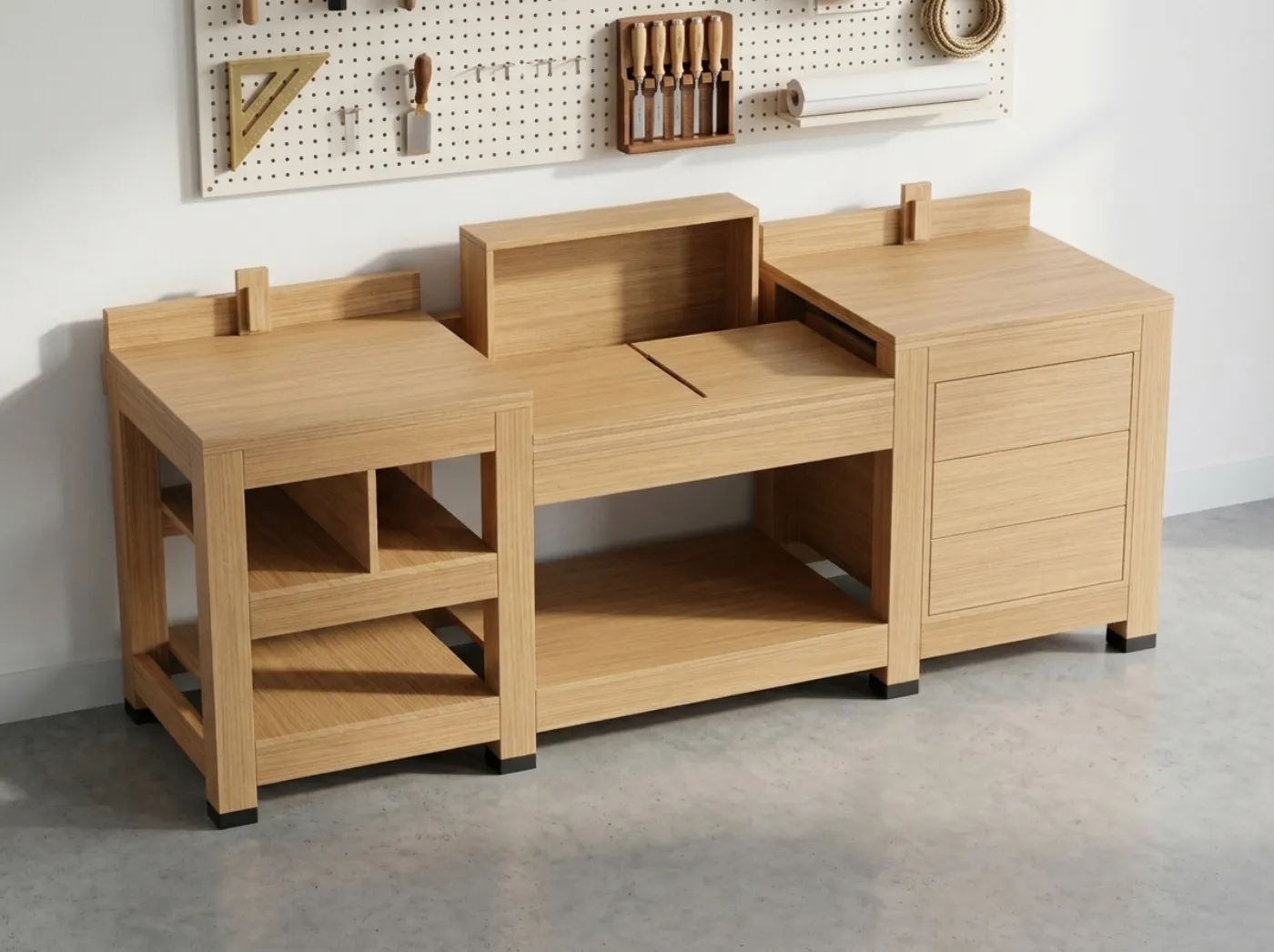

Plate No. 21 What you are building
Miter saw station plans PDF: four complete builds, an 8 ft and a 10 ft station, each fixed (leveling feet, tied to the wall) or mobile (locking casters), with dimensioned drawings, cut lists and materials lists.

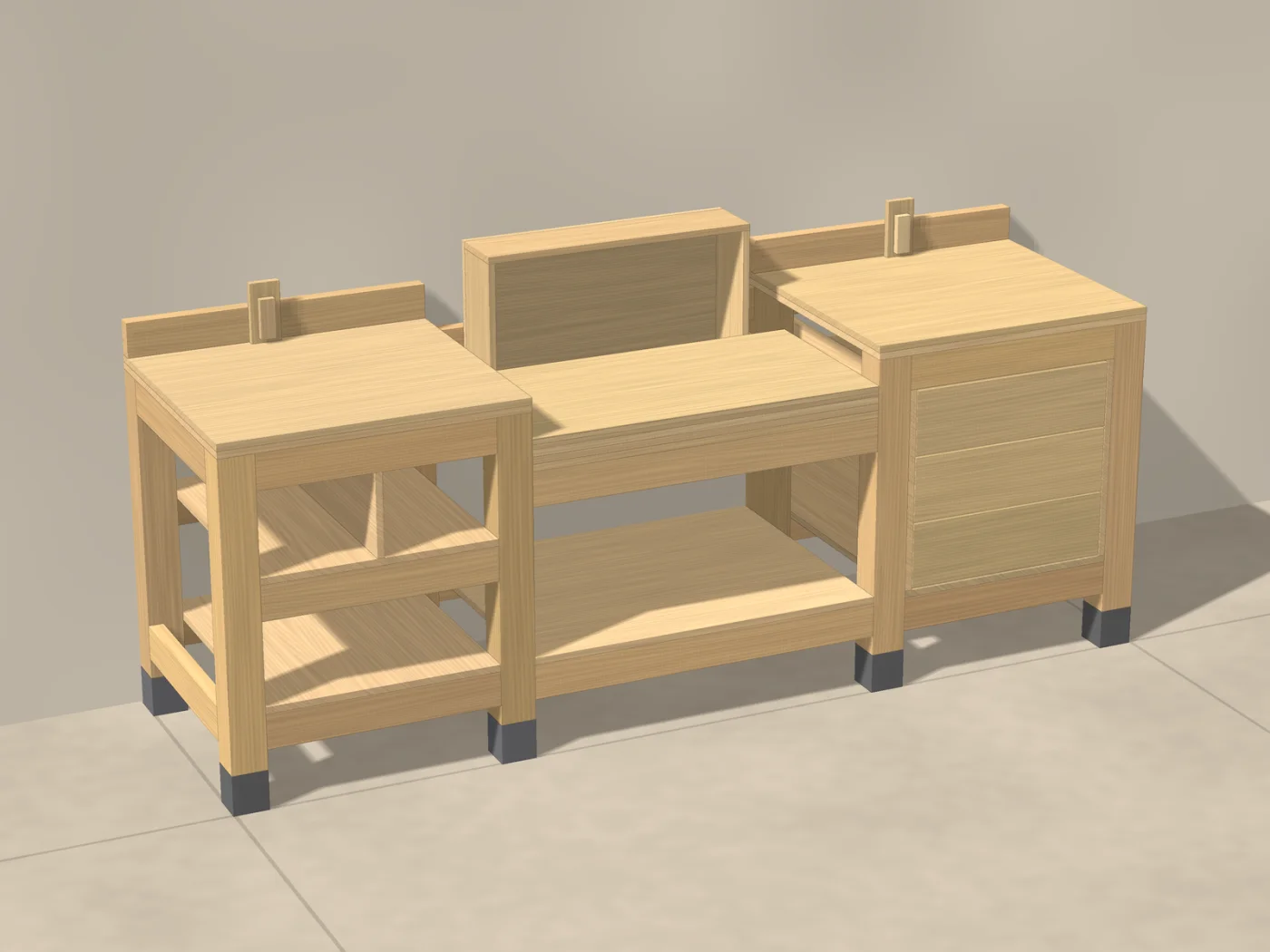

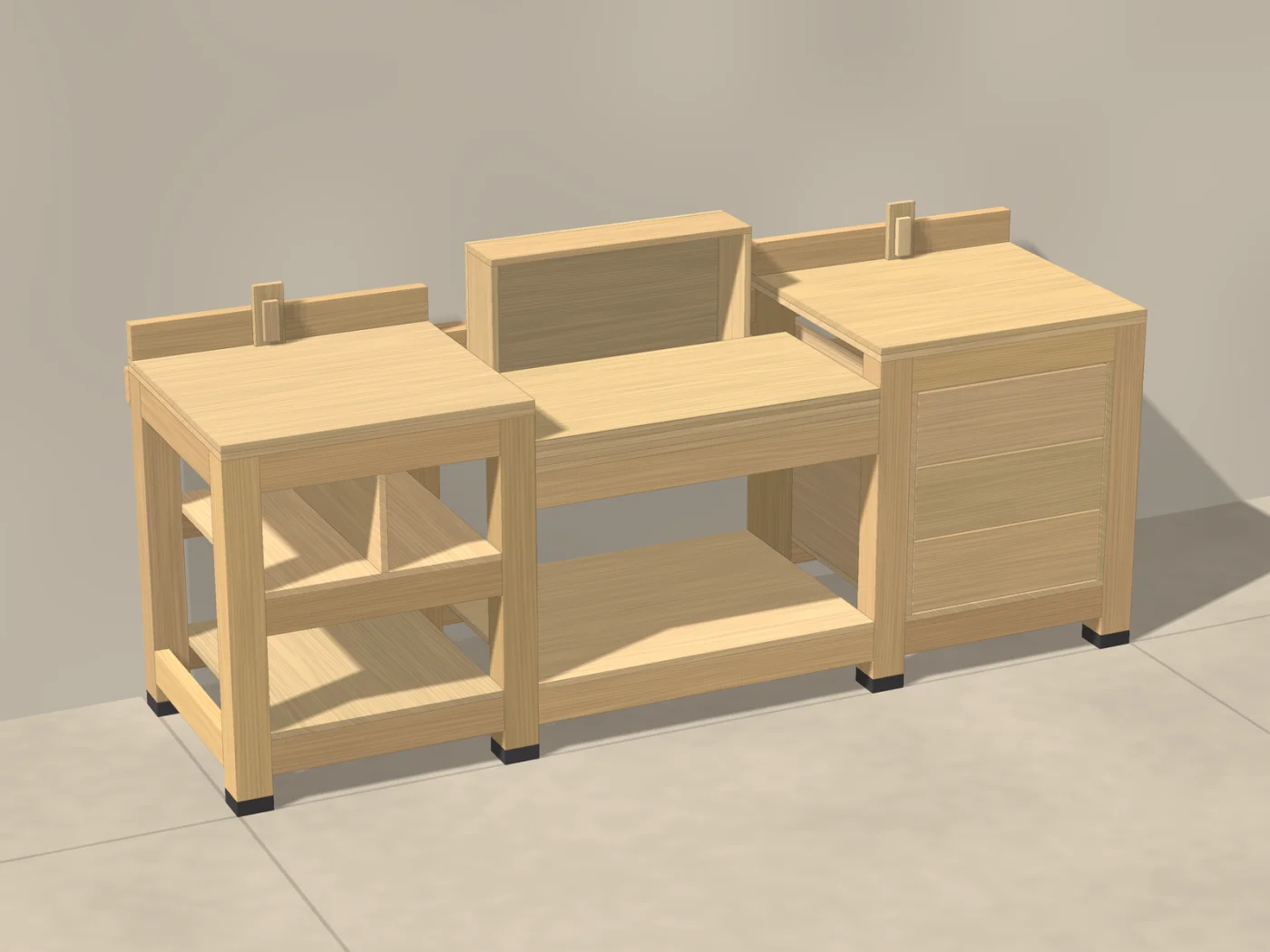

Builds: 8 ft and 10 ft long, 28 in deep, wing tops 36 in high, 36 in clear saw bay. Longest board fully supported: 90 in on the 8 ft station and 114 in on the 10 ft station. Saw table height design range: 2-1/2 to 6-1/2 in above the saw base (you measure yours). Frame of 4x4 legs and 2x4 rails with 3/4 in plywood tops, three drawers on 20 in slides, two cubby tiers.
Who these plans are for
Garage and basement builders with a 10 or 12 in miter saw who want it at wing height with storage and dust control, using standard 4x4s, 2x4s and plywood.
How the set works
Pick fixed or mobile and 8 or 10 ft from the boards you cut, measure your saw, then follow the frame, drawing, cut list and materials sheets for your station, plus crosscut capacity math, a dust hood, drawer, cubby, build sequence, fastener, budget and maintenance pages.
Sheets inside

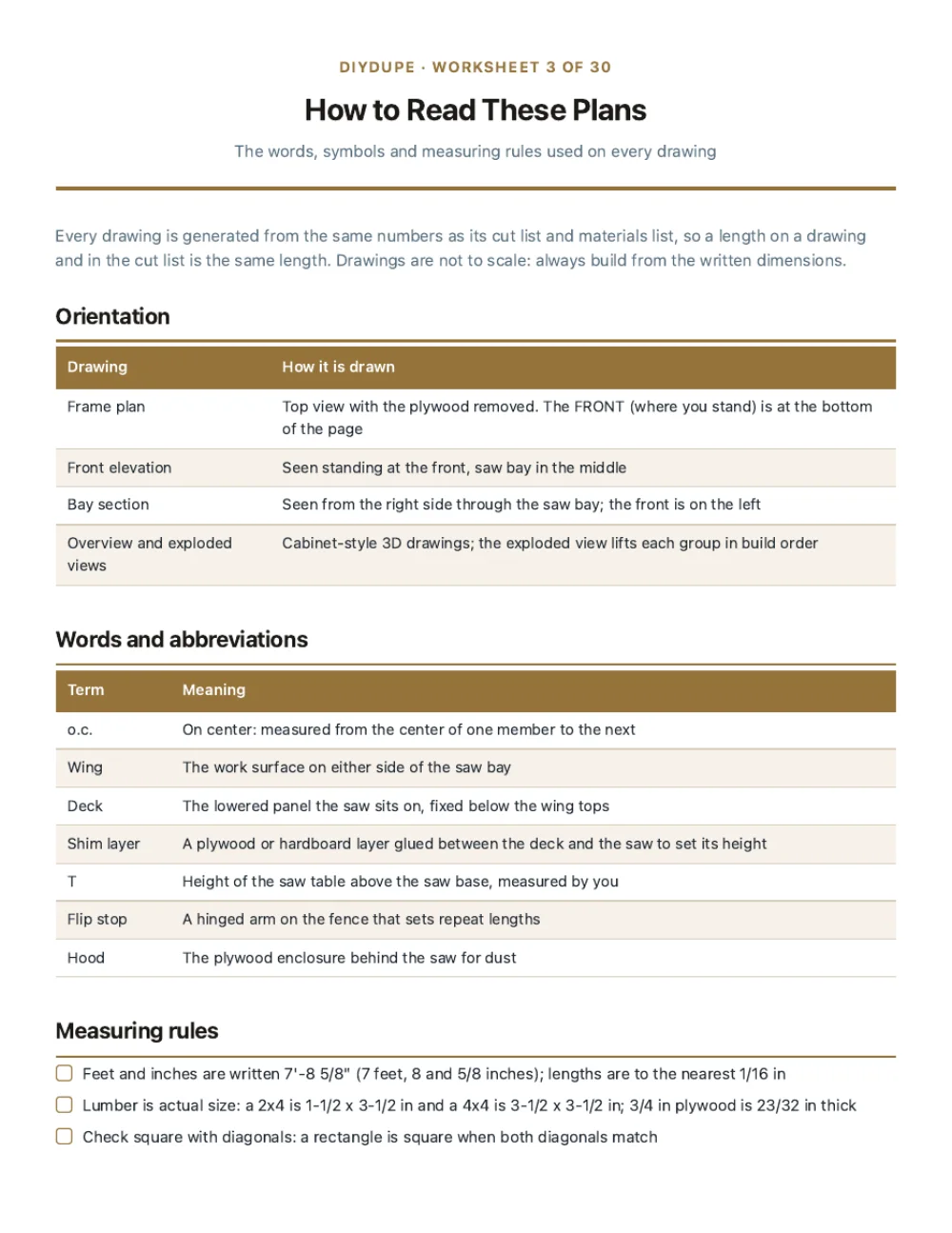

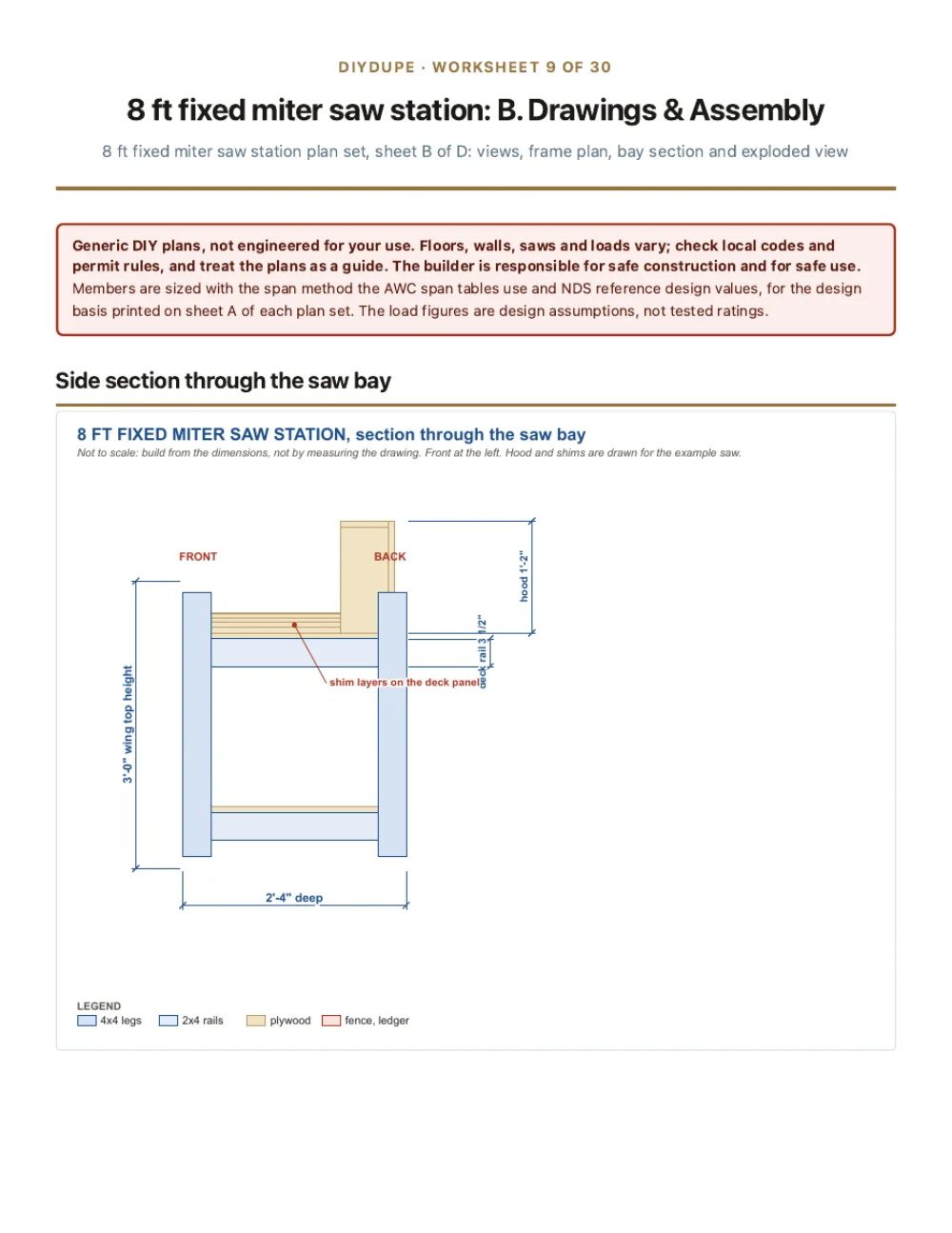

Plan selector, How to read the plans, Shop safety and setup, Saw height and shim lookup, Crosscut capacity and flip stop, Dust hood and port, Drawers cubbies and shelves, then for each of the four stations: A design basis and member schedule, B drawings and assembly, C cut list and checkpoints, D materials list; Tools, Build sequence, Fastener schedule, Glue-up and finishing, Build day checklist, Budget planner, Maintenance log, Lumber shopping summary.
- Materials cost workbook (Excel and Google Sheets)
- Every sheet as its own printable page (ZIP)
- Printable plans (PDF)
- How to open the workbook in Google Sheets (PDF)
Price the build before you buy a board
These are the materials lists from the plans themselves, priced at typical US home-center prices. Type your own prices to see your total. Hardware and finishes link to Amazon so you can compare.
Estimates are our typical US home-center prices, not Amazon prices; check current prices where you buy. They change with your region and the lumber market. Amazon links are affiliate links: we may earn a small commission at no cost to you.
What you need, nothing more
Straight from the tools sheet in the The Miter Station plans. One cordless kit covers most of it; pick the tier that suits how often you build.
Start with a cordless kit
RYOBI ONE+ 18V Cordless 2-Tool Combo Kit with Drill/DriverSee it on AmazonMid-range
Makita XT269T 18V LXT Lithium-Ion Brushless Cordless 2-Pc. ComboSee it on AmazonPro
Milwaukee Electric - M18 Fuel. 2-Tool Combo KITSee it on AmazonThe tools the plans call for
Nice to have, and the supplies
Amazon links are affiliate links: we may earn a commission at no cost to you. Check current prices on Amazon. Lumber and plywood are on the materials list above; buy those locally.
Before you build
How much does it cost to build the Miter Station?
Our estimate for the materials in the 8ft fixed is about $550 to $790 at typical home-center prices. Lumber prices vary a lot by region and season, so the plan set includes a workbook where you type your own prices and the total works itself out.
What sizes are included?
This set includes 8ft fixed, 8ft mobile, 10ft fixed and 10ft mobile, each with its own drawings, cut list and materials list.
Do I need advanced woodworking skills?
Garage and basement builders with a 10 or 12 in miter saw who want it at wing height with storage and dust control, using standard 4x4s, 2x4s and plywood.
Are these engineered plans?
No. They are generic DIY plans, not engineered or stamped drawings. Each member is checked against a stated design load, and the design basis is printed in the plans, but you are responsible for safe construction, local codes and safe use.
How do I get the files?
Right after checkout you land on your download page with the PDF, the workbook and a ZIP of every sheet. Stripe also emails your receipt. Bookmark the page to download again later.
What if they are not what I expected?
Write to us within 30 days and we will fix the problem or refund you. See the guarantee page for details.
This is a digital download, no physical item ships. These are generic DIY plans, not engineered or stamped drawings. Floors, walls, saws and loads vary: check your local building codes and permit rules, read your saw manual and wear eye and ear protection. Plans are a guide; the builder is responsible for safe construction and safe use. Colors can look a little different on your screen and printer. For personal use only; please do not resell or share the files.
